GRAVITY FLOW
METAL DETECTOR
with REJECT DIVERTER VALVE
6 inch diameter,
food grade stainless steel...
Click
on picture(s) to enlarge!
Click
on picture(s) to enlarge!

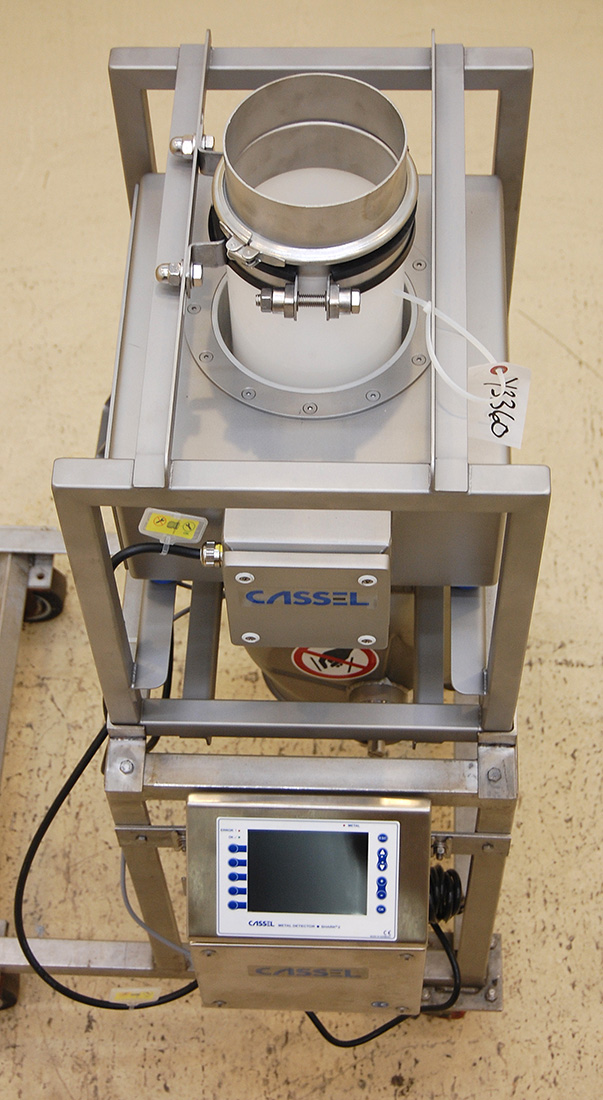

A CASSEL METALSHARK 2
Model GFS-150-RV drop-through metal detector for
industrial manufacturing and packaging process applications,
FEATURING...
6 inch diameter
by
24 inch long anti-static plastic through-tube with stainless steel
connections.
The metal detection search
head enclosure comes
mounted inside a 19 5/8 inch wide by 16 5/8 inch long by 20 inch high
tubular stainless steel frame, with angle cross pieces for mounting in
place as needed to support your product inspection application / usage.
Stainless steel high
speed pneumatic Y-valve
reject valve, with 6 inch diameter discharge outlets;
35
inch free-fall
from inlet to bottom discharge with reject diverter in place. (NOTE:
Also available in head-only configuration withOUT reject device; --CALL
ALARD at 315-589-4511 for current availability.
Touchpad operator control
panel connected by 6
foot long cord so as to facilitate mounting for convenient access, with
a 5.4 inch color screen, RS-232 and RS-485 serial data acquisition
ports, and Ethernet data interface, in a stainless steel
enclosure. Optional data logging software is available for
tracking and reporting for HACCP and other quality assurance and
certification regimes.
A food grade
metal detector
specifically built
for food processing and other industrial production line metal
detection applications. All food grade / USDA sanitary hose-wash-down
stainless steel construction (IP-67/NEMA 6 search head enclosure,
IP-65/Nema4,4x,6,12 & 13 control enclosure).
110 volt single phase
(standard household current) electrical input.
Sensitivity varies depending
on product run
(determined by product characteristics), especially where
wet,
salty, or acidic products that are electrically conductive introduce
"product effect" into the equation, however the manufacturer
rates dry sensitivity for this head, with no product in the aperture,
at a maximum sensitivity of .8mm ferrous, 1.1 mm non ferrous, and 1.3mm
stainless steel.
Quick teach feature learns new
products in 4 to 7 passes.
The control unit allows for
120 product presets.
Single control board
technology with all control
electronics on one circuit board maximizes reliability, and minimizes
maintenance expenses.
304
stainless steel search head and conveyor construction.
NEW EQUIPMENT -
Includes a 2 year manufacturer warranty on hardware / parts.
Gravity free-fall metal detection systems
are commonly
used for free-flowing granular and / or particulate products, as well
as sliced, diced, shredded and whole products in food manufacturing and
other industrial production applications. Gravity flow metal detectors
are commonly mounted under feed hoppers, or under mixer / blender
discharges, or between scales and form-fill-seal or other types of
baggers.
Alard
routinely stocks this make / model configuration at Alard on an ongoing
basis so as to have one available for immediate shipment. Call your
Alard Sales Representative at 315-589-4511 to confirm current
availability, and to further discuss your metal detection system needs.
Alard item reference #: Y3357
Unless
otherwise stated, volume, speed,
and/or capacity estimates given are those of the manufacturer(s) of the
equipment. All offers are subject to prior sales and owner's
confirmations. Unless otherwise specified, any prices shown do not
include skidding, crating, or freight.
